12″ Electric Brake Drum 8 Stud Dexter Style With 14125A/76 Inner 25580/20 Outer Bearings

$350.00

SKU: EHD8S12F-BTP
SKU EHD8S12F-BTP Categories , Tags ,

1 x Trailer 12″ 8-Stud Brake Drum

$350.00

Delivery and Click & Collect

Free Click & Collect

5 Iris Place, Acacia Ridge QLD 4110

Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.

Select delivery location

Delivery

Item Description:

The 12″ brake drum 8 stud is one of the most heavy duty styles of drum used on the largest trailers rated up to 3500kg per set of drum. Each drum comes complete with the bearings, seal, dust cap and nuts you need to safely replace the drums on your trailer.  Designed for industrial and agricultural. If you aren’t sure what bearing style you need please contact our friendly staff. This drum is commonly used on American woodchipper trailers. 8 x 165.1mm is the pcd with 9/16″ Studs.

Item Specification:
Stud pattern : 8 Stud – 8 x 6.50″
PCD : 8 x 165.1mm
Stud Thickness : 9/16″ UNF
Bearing Numbers : 14125A/76 Inner 25580/20 Outer
Dust Cap Diameter : 69.10mm
Pre-pressed bearing cups
Fittings included
Natural finish
SG casted iron



Orders Includes:

1 x Trailer 12″ 8-Stud Brake Drum

1 x Bearing Set

  • 1 x Inner Bearing 14125A/76
  • 1 x Outer Bearing 25580/20
  • 1 x Oil Seal
  • 1 x Dust Cap – 69.10mm Diameter
  • Wheel Nuts to suit
BTP

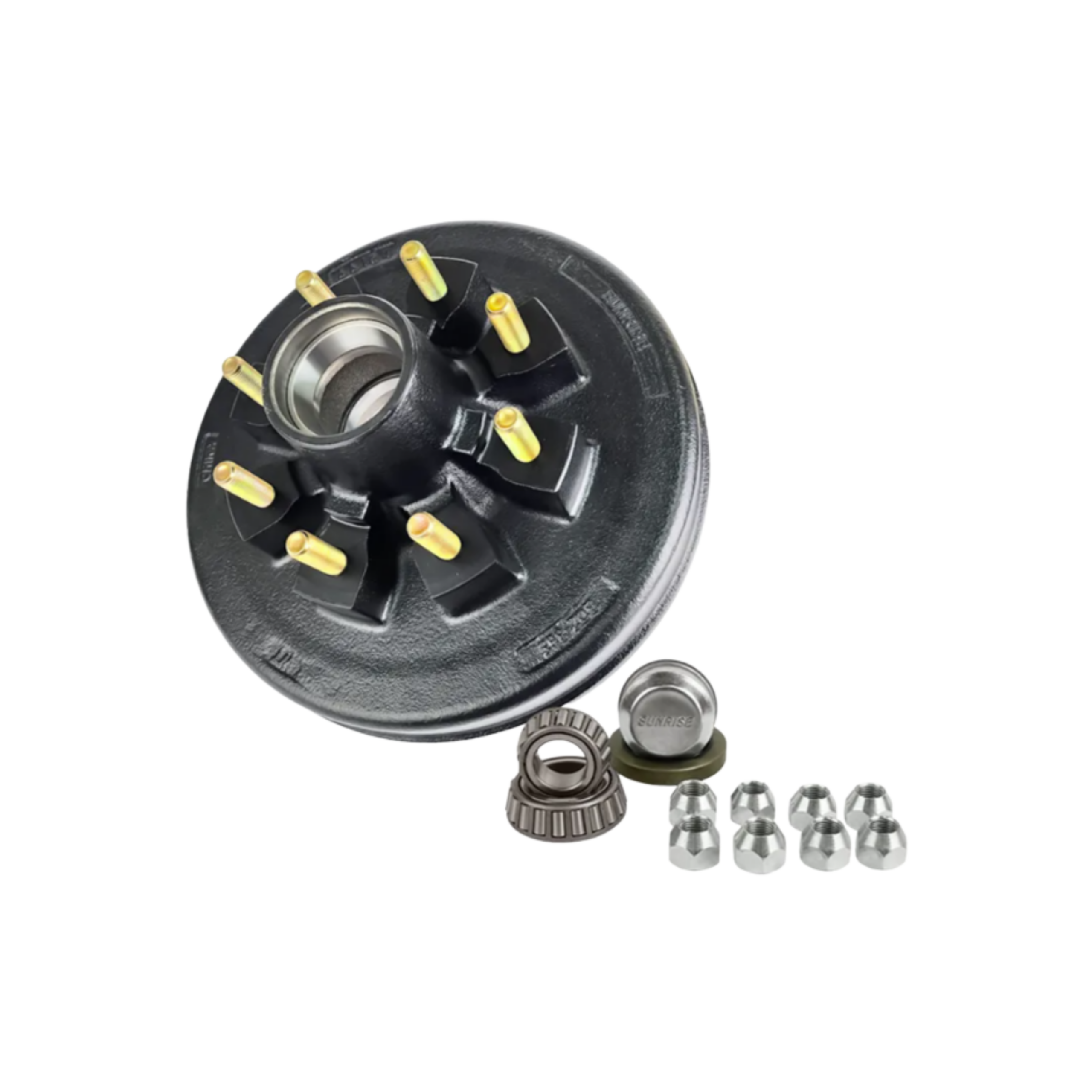

12″ Electric Brake Drum 8 Stud Dexter Style With 14125A/76 Inner 25580/20 Outer Bearings - Image 1
