Item Description

For upgrade or building tandem axle trailers.

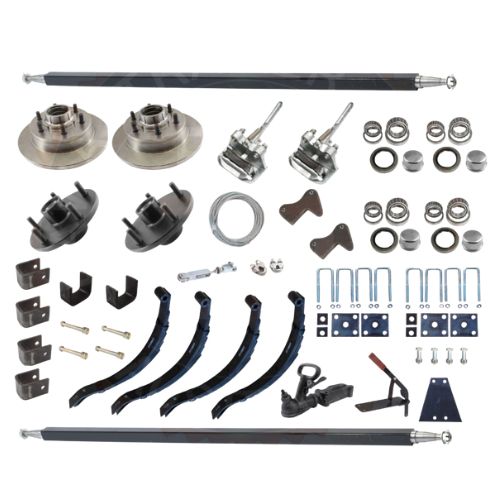

ORDER CONTAINS

– 2 x 40mm Square Axles (1T Rated)  with Holden/LM machining  (Customer To Specify Length)

Axle Lengths Available: (From Tip to Tip)

(70’’, 74’’, 77’’, 78’’, 81’’, 83’’, 84’’, 85’’, 87’’, 89’’, 90’’, 91’’, 93’’, 94’’, 95’’, 96’’, 97’’)

– ADDITIONAL $70 PER AXLE FOR CUSTOM LENGTHS

• 4 x 7 Leaf Slipper Springs 45mm wide
• 1 x Tandem Spring Fitting Kit to suit 40mm SQ Axles (Includes 4 x fish plates (1/2’’) , 8 x U-Bolts, 4 x Axle Pads)
• 2 x Discs – Natural Finish (Stud Pattern: Ford, Holden HT, Holden HQ & 6 stud Land Cruiser)
• 2 x Un-braked Hubs – Natural Finish (Stud Pattern: Ford, Holden HT, Holden HQ & 6 stud Land Cruiser)
• 4 x Sets of Holden/LM Bearings with Seals, Dust Caps;
• 2 x Galvanised Mechanical Brake Calipers
• 2 x Mechanical Disc Brake Flanges – suit 40mm square Stub Axles (c/w/ Bolt / Nut/ Washer);
• 1 x 2.0T Mechanical Override Coupling with actuator – Black
• 1 x Coupling Plate
• 1 x Cable Adjuster;
• 1 x Brake Cable Kit  (8Mtr Roll 4mm Winching Cable;2 x Cable Clips & Cable Adjuster)

Note: $100 Extra for assembled axles !!!

(Axle assembly requires deposit or full payment before we can begin on your order.)

If you are unsure of your axle length, please provide your trailer Chassis measurement and backspace of wheels and our team will do our best to assist you!

EXTRAS TO REPLACE THE ABOVE STANDARD KIT PART

• Kit to suit 6 stud Landcruiser  wheels                                            Add $130.00
• Tandem R/Roller Springs in Lieu of Slipper                                   Add $250.00
• Overlay Axles                                                                                      Add $ 320.00
• Drop Axles 2″ or 4″                                                                            Add $ 320.00

Other Information:

Delivery calculated at check-out

Orders can be picked up from our warehouse at 5 Iris Place, Acacia Ridge, QLD

Thanks !!
