Item Description

For upgrade or building tandem axle trailers.

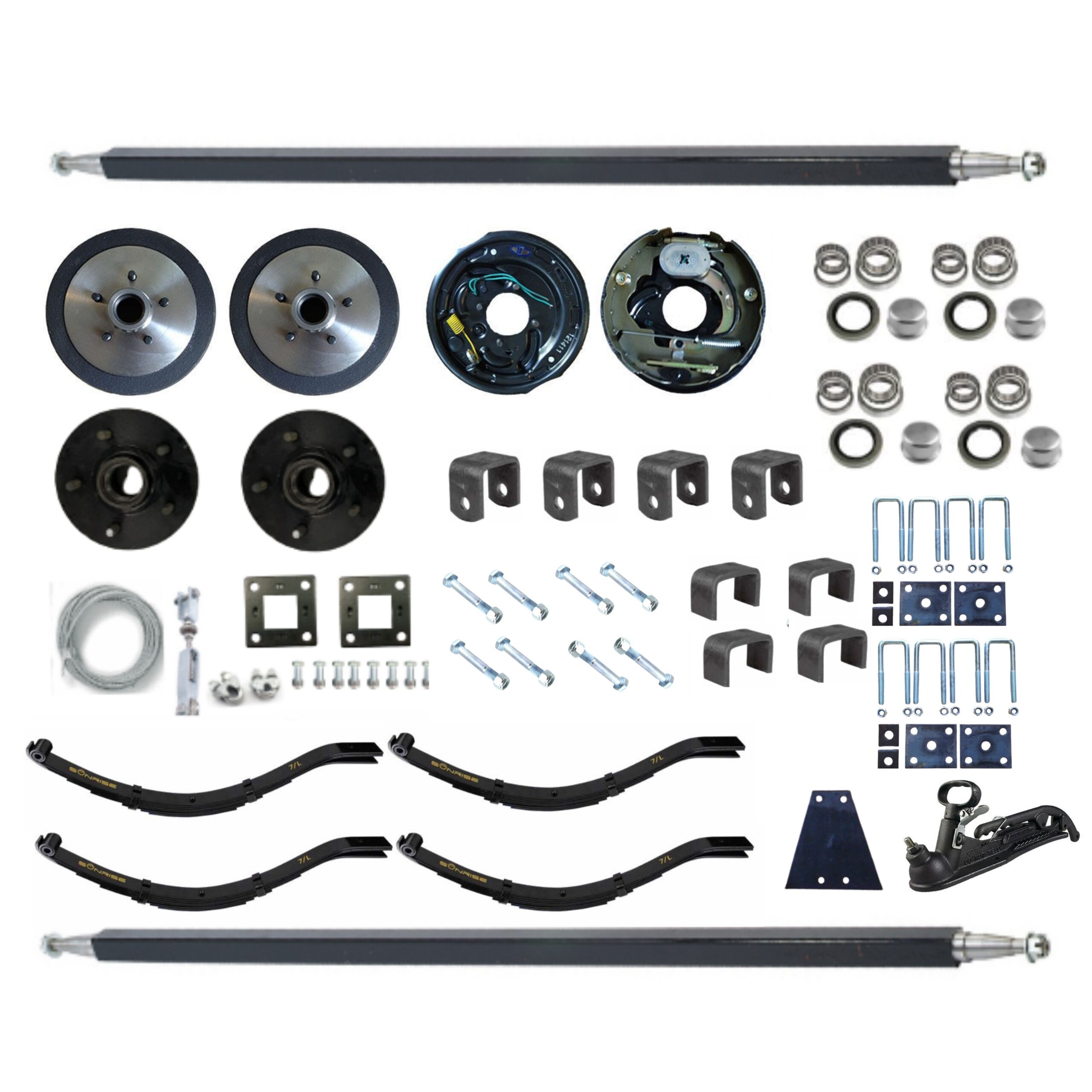

ORDER CONTAINS

• 2 x 40mm Square Axles 1.0T maximum operating weight (please specify length of axle);
• 4 x 7 Leaf 45mm wide Eye / Slipper Springs;

•  1x Tandem Spring Fitting Kit to suit 40mm Sq Axles  (includes 4 x fish plates, 8 xU-Bolts, 4 x Axle Pads, 4 x spring bolts, 4x deep front hangers and 2x rear hangers);

• 2 x Hubs complete with bearing kits (Available in 5 Stud pattern: Ford, Commodore, HQ or HT );
• 2x 10″ Electric Brake Hub drums (please specify pattern);
• 1 pair of Electric Brake Assemblies (1 LH / 1 RH);
• 2 x Electric Brake Flanges – suit 40mm Sq. Axle (c/w/ Bolt / Nut/ Washer);
• 1 x 3.5T Electric Brake Coupling;
• 1 x Cable Adjuster;
• 1 x 8Mtr Roll 4mm Winching Cable;
• 4 x Cable Clips.

Extras
Axle Assembly (If required)
Add $100.00!

Kit to suit 6 stud Landcruiser wheels

Add $40.00

Tandem Rocker Roller Springs in lieu of Eye and Slipper Springs

Add $250.00

45mm square axles with 1.4T maximum operating capacity

Add $100.00

Overlay Axles

Add $ 220.00

Drop Axles 2″ or 4″

Add $ 400.00

Electric Brake Controller

Add $ 125.00

(Axle assembly requires deposit or full payment before we can begin on your order.)
