Durable, heavy-duty component designed for high-performance trailers, offering resilient, shock-absorbing, and corrosion-resistant features that ensure reliable, long-lasting support under heavy loads.
Tri Axle Rocker Roller Suspension Spring Complete Assembly Decromate
Price range: $690.00 through $895.00
SKU: SRRPPTD
Tri Axle Rocker Roller Suspension Spring Complete Assembly Decromate
Delivery and Click & Collect
Free Click & Collect
5 Iris Place, Acacia Ridge QLD 4110
Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.
Delivery
Product Specifications
Item Description:
Orders Includes:

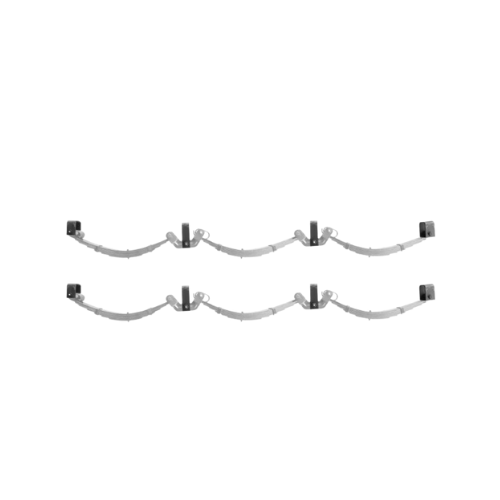

1 x Set Tri-Axle R/Roller Springs – Painted (Suitable for 14″/15″/16″ wheels) HEAVY DUTY:

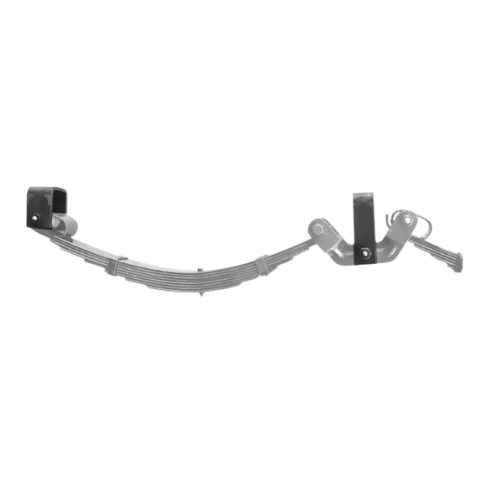

- 2 x Decromate Tri axle rocker roller suspension
- 6 x Solid Steel Bushes to suit 5/8″ Bolts
- 4 x Front Hangers 60MM Wide 8MM Thick
- 4 x Rear Hangers 60MM Wide 8MM Thick
- 4 x Centre Hangers 50mm Wide 8MM Thick
- 4 x Centre Rocker Arms Painted
- 6 x 5/8″ Greasable Bolts with Grease Nipples and Nyloc Nuts;
- 6 x 5/8″ Non-Greasable Bolts with Nyloc Nuts;
- 4 x 3/4″ Greasable Bolts with Grease Nipples, Nyloc Nuts and Split Pins
Item Specifications:
- Suitability: Tri axle trailers
- Material: Steel
- Colour: Sliver
- Finish: Decromate (Rust protection)
- Rating: 3000kg to 6750kg total
- Wheel Size: 14″ or 15/16″
- Width: 60mm
- Leaf Thickness: 6mm
- Bolt diameter: 16mm (5/8″)
- Overall length: 2364mm (Center of eye to center)
- Dimensions & diagram: Refer to image
