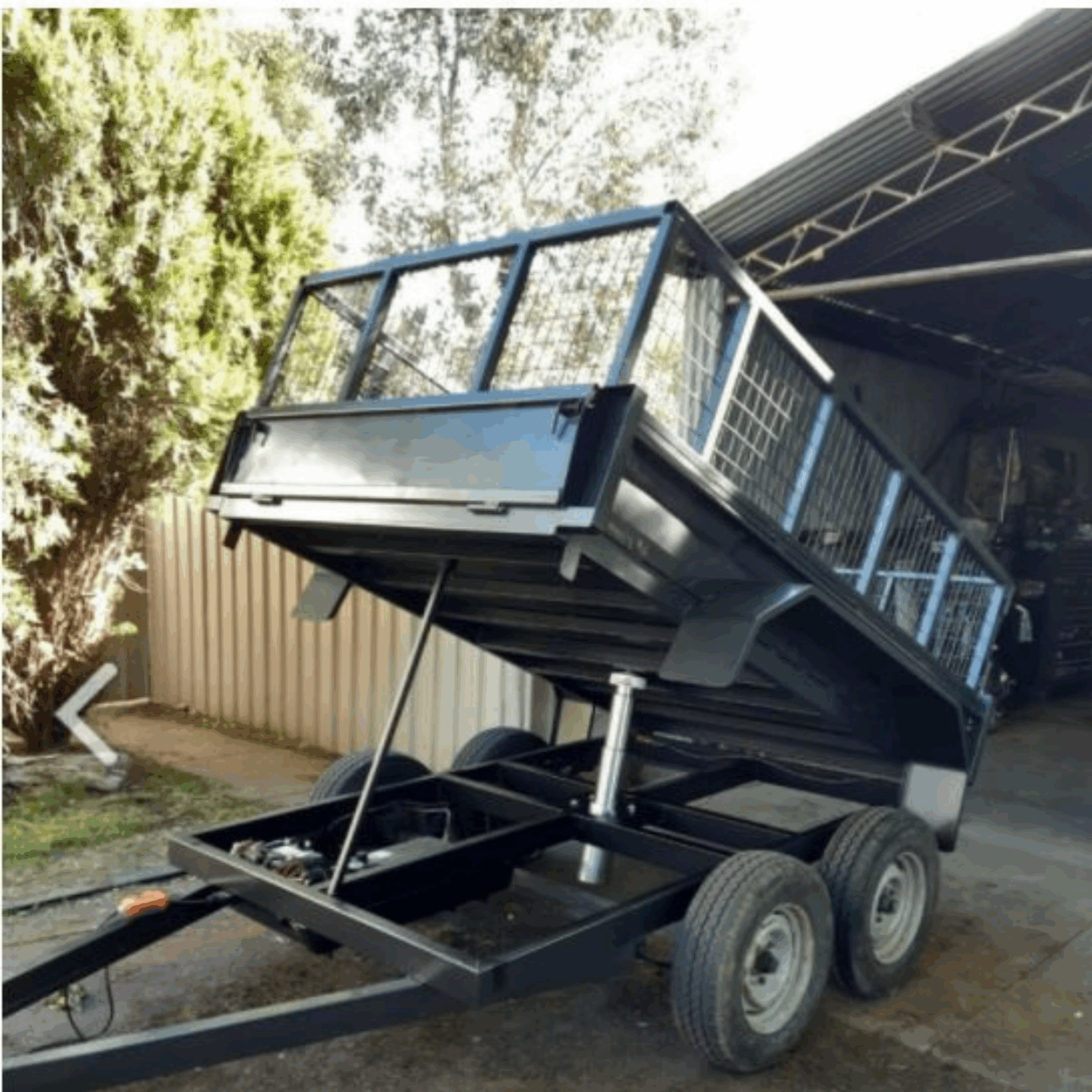

Hydraulic Ram Cylinder Tipper Trailer kit Pump 1000mm stroke 5 stage 5000kg HD

$1,544.75

SKU: HTK5S1030
SKU: HTK5S1030

1 x Hydraulic Ram Cylinder Tipper Trailer kit Pump 1000mm stroke 5 stage 5000kg

Delivery and Click & Collect

Free Click & Collect

5 Iris Place, Acacia Ridge QLD 4110

Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.

Select delivery location

Delivery

Item Description:

Ensuring firm connection, easy installation, vibration resistance, durability, corrosion protection.

Orders Includes:
  • 1 x Hydraulic Ram 1000mm Stroke 5 Stage rated 5000kg
  • 1 x Hose and Fittings
  • 1 x Remote
  • 1 x 12V Pump Tank



Item Specifications:
  • Stage: 5
  • Stroke: 1000mm
  • Pivots: 1270mm
  • Capacity: 5t
  • Volume: 5.5l
  • Weight: 24kg
  • Øa: 125mm
  • F: 160mm
  • Øb: 40mm
  • G: 367mm
  • C: 40mm
  • Øh: 45mm
  • D: 148mm
  • Øi: 88mm
  • E: 207mm
  • Pump/motor/reservoir/valve
  • 2-way/2-position Normally Closed Solenoid Operated
  • Externally Adjustable Relief Valve
  • Lowering Valve
  • 3/8’’ Bsp Outlet
  • Horizontal Mounting Standard
Standard Shipping | Free Delivery
Hydraulic Ram Cylinder Tipper Trailer kit Pump 1000mm stroke 5 stage 5000kg HD
Hydraulic Ram Cylinder Tipper Trailer kit Pump 1000mm stroke 5 stage 5000kg HD - Image 2
Hydraulic Ram Cylinder Tipper Trailer kit Pump 1000mm stroke 5 stage 5000kg HD - Image 3
Hydraulic Ram Cylinder Tipper Trailer kit Pump 1000mm stroke 5 stage 5000kg HD - Image 4
