DIY Un-Braked Single Axle Kit 1000Kg Galvanised

Price range: $460.00 through $620.00

SKU: DIY1000G
SKU DIY1000G Categories ,

DIY 1000KG Rated Single Axle Un-Braked Trailer Kit Galvanised

Price range: $460.00 through $620.00

Delivery and Click & Collect

Free Click & Collect

5 Iris Place, Acacia Ridge QLD 4110

Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.

Select delivery location

Delivery

Item Description:

Build your trailer with confidence using this complete 1000kg Single Axle Galvanised Un-braked Kit. Perfect to get your trailer on the road.

Orders Includes:
  • 1 x DIY 1000Kg Galvanised Single Axle Unbraked Kit
    • 1 x 40mm Square Axle Galvanised (length of your choice)
    • 2 x Lazy Hubs Dacromat (stud pattern of your choice)
    • 2 x Holden (LM) Bearing Sets
      • 4 x Bearings LM67048/LM11949
      • 2 x Marine Seal LM
      • 2 x Dust Caps
      • Wheel Nuts to suit
    • 1 x 2/3 Hole Unbraked Coupling Zinc
    • 1 x 3-Hole Coupling Plate
    • 4 x High Tensile Bolts 1/2″
    • 1 x U Bolt Kit
      • 4 x 40Sq U-Bolts Galvanised
      • 2 x Fish Plates 45mm Galvanised
      • 2 x Axle Pad Galvanised

Option: (please select)

  • 2 x Eye to Slipper 6 leaf 45x6mm wide Galvanised (Rated to 1000kg pair)
    • Eye to Slipper Spring Fitting Kit
      • 2 x Rear Hanger 45mm
      • 2 x Front Hanger 45mm
      • 2 x High Tensile Bolts 3 1/2″
  • 2 x Eye to Eye 4 leaf 45x8mm wide Galvanised  (Rated to 1000kg pair)
      • Eye to Eye Spring Fitting Kit
        • 2 x Dumb Jacks 45mm
        • 2 x Front Hanger 45mm
        • 4 x Shackle Plate 45mm
        • 6 x High Tensile Bolts 3 1/2″
Item Specifications:
  • Rating: 1000Kg
  • Unbraked
  • Axle Machining: Holden (LM)
  • Finish: Galvanised
  • Axle Assembly available



BTP

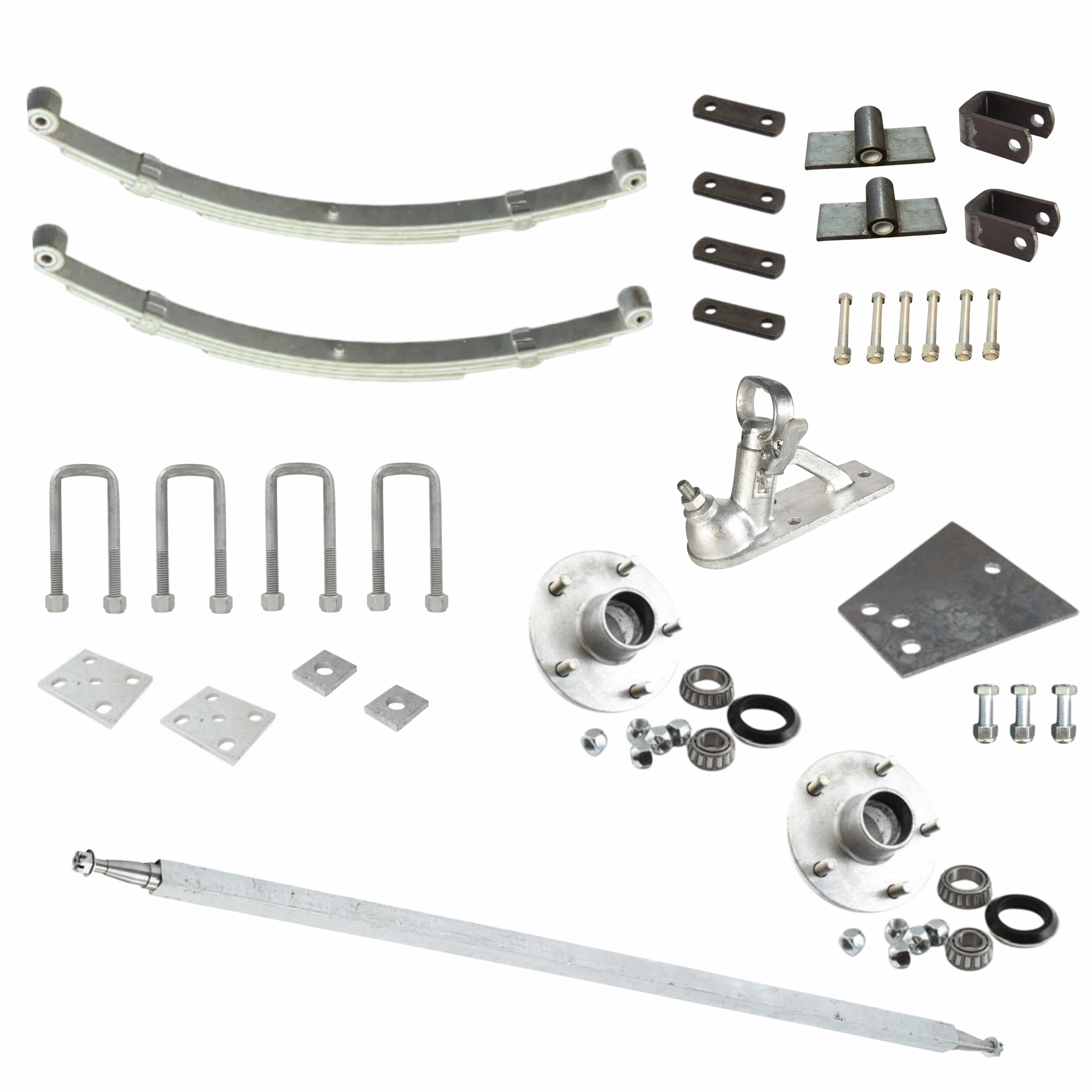

DIY Un-Braked Single Axle Kit 1000Kg Galvanised - Image 1

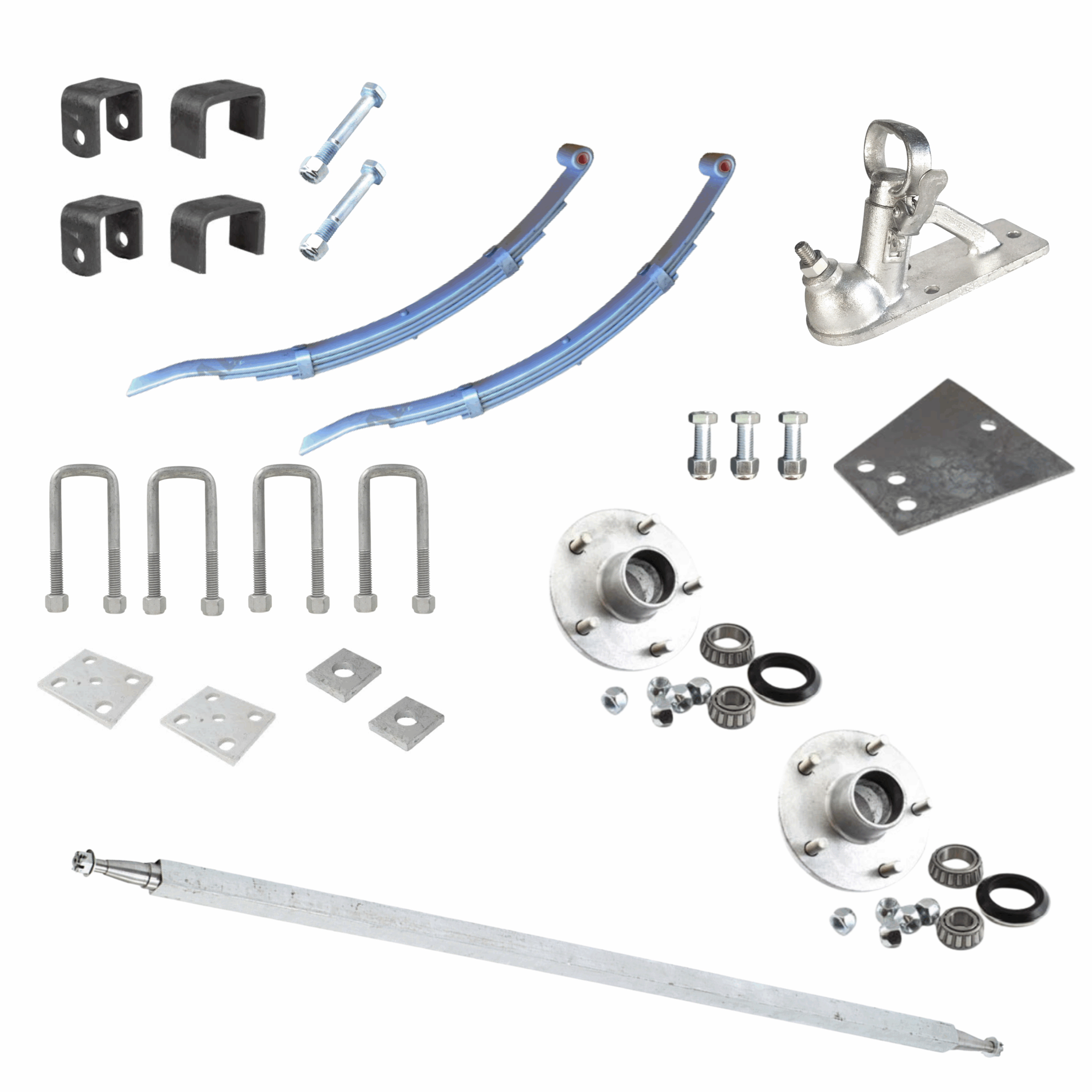

DIY Un-Braked Single Axle Kit 1000Kg Galvanised - Image 2
