DIY Un-Braked Off-Road Single Axle Kit 1400Kg

Price range: $520.00 through $610.00

SKU: DIY1.4TSAK-OFF60x7
SKU: DIY1.4TSAK-OFF60x7

DIY 1400Kg Single Axle Off-Road Un-braked Kit

Delivery and Click & Collect

Free Click & Collect

5 Iris Place, Acacia Ridge QLD 4110

Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.

Select delivery location

Delivery

Item Description:

Build your trailer with confidence using this complete 1400kg Off-Road Single Axle Un-braked Kit. Perfect to get your trailer on the road.

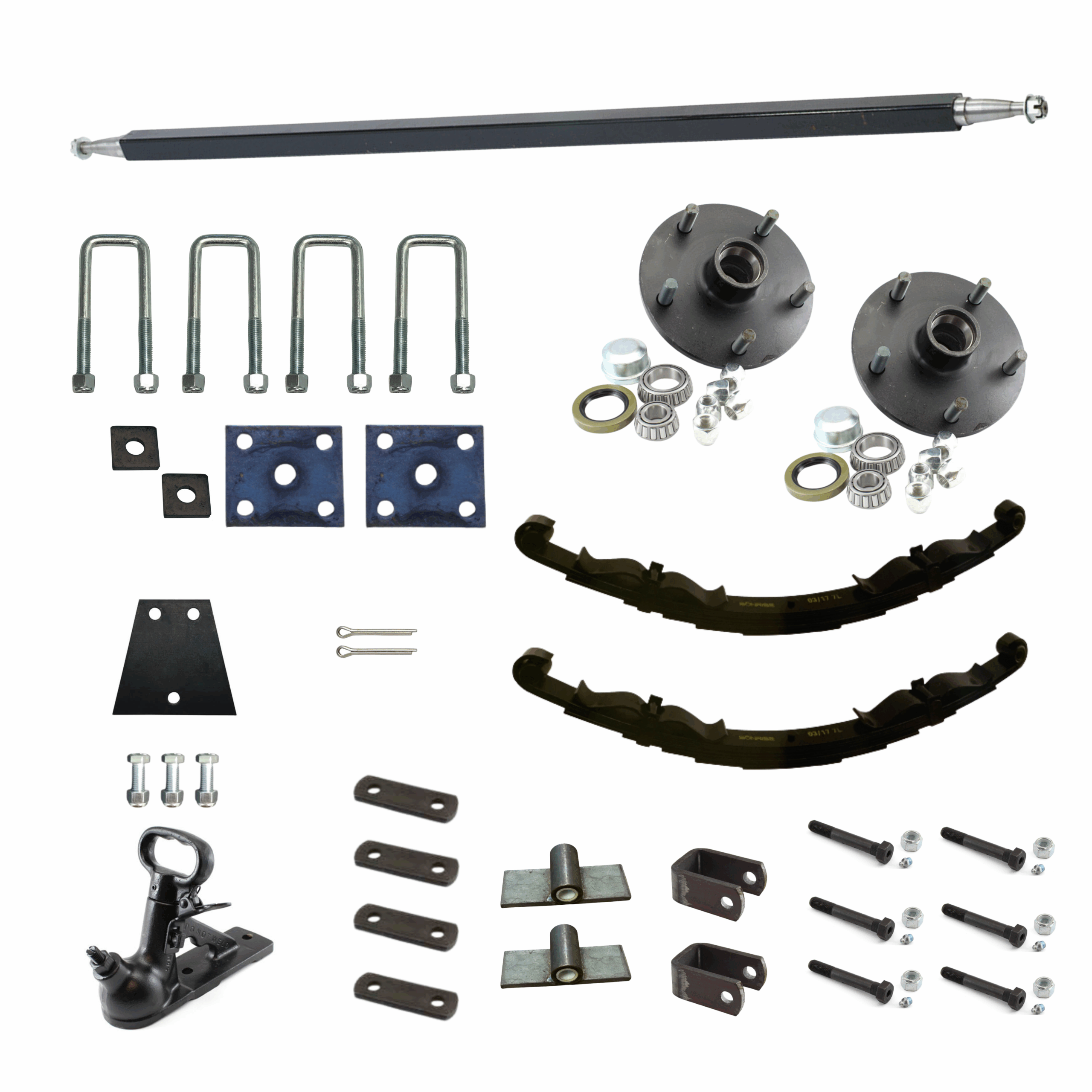

Orders Includes:
  • 1 x DIY 1400Kg  Single Axle Off-Road Un-braked Kit
    • 1 x 45mm Square Axle (length of your choice)
    • 2 x Lazy Hubs (stud pattern of your choice)
    • 2 x Ford(SL) Bearing Sets
      • 4 x Bearings LM68149/LM12749
      • 2 x Oil Seal SL
      • 2 x Dust Caps
      • Wheel Nuts to suit
    • 1 x 2/3 Hole Un-braked Coupling Black
    • 1 x 3-Hole Coupling Plate
    • 4 x High Tensile Bolts 1/2″
    • 1 x U Bolt Kit
      • 4 x 45mm Sq U-Bolts Zinc 5/8″
      • 2 x Fish Plates 5/8
      • 2 x Axle Pad Natural
  • 2 x Off-Road Eye to Eye 7 leaf 60x7mm wide (Rated to 1500kg pair)
      • Spring Fitting Kit
        • 2 x Dumb Jacks 60mm
        • 2 x Front Hanger 60mm
        • 4 x Shackle Plate 60mm
        • 6 x Greasable Bolts with Nyloc Nuts
Item Specifications:
  • Rating: 1400Kg
  • Un-braked
  • Off-road
  • Axle Machining: Ford (SL)
  • Finish: Natural
  • Suspension
    • Length (Eye centre to Eye centre): 830mm
    • Width: 60mm
    • Leaf thickness: 7mm
    • Camber Height: 165mm
  • Axle Assembly available
