Item Description

For upgrade or building tandem axle trailers with a maximum ATM of 2000 kg.

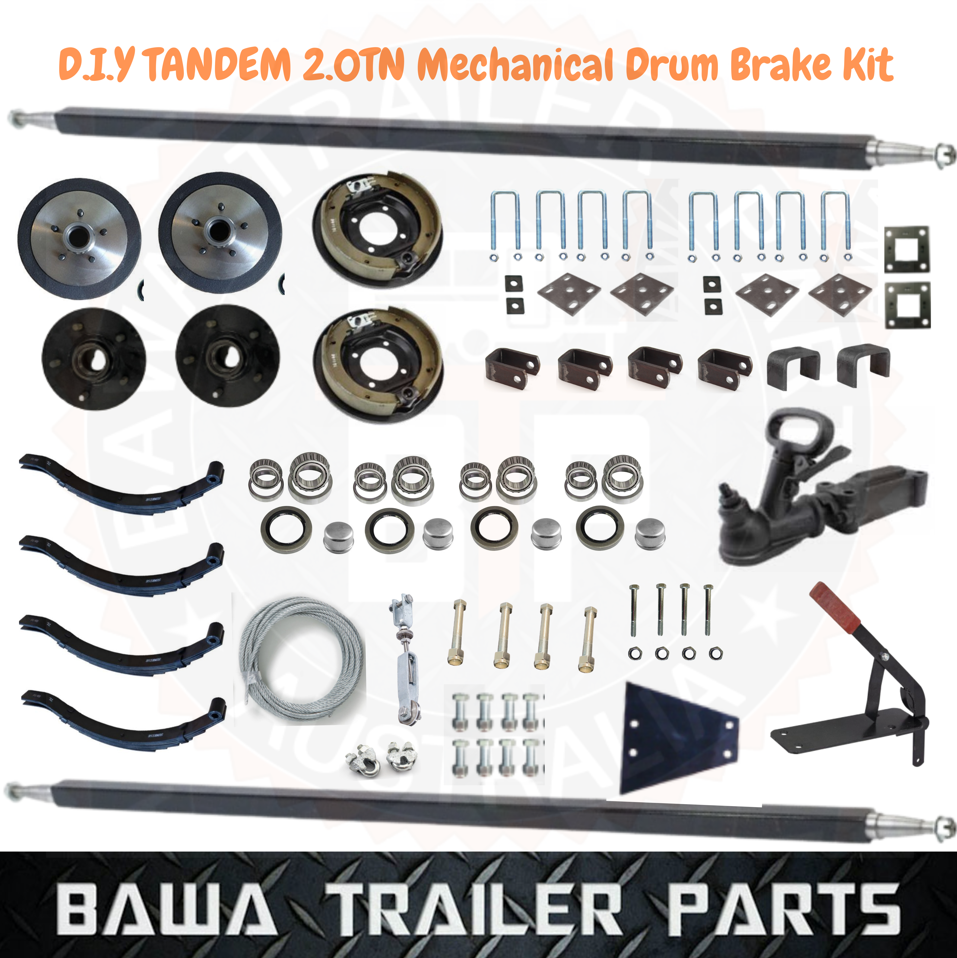

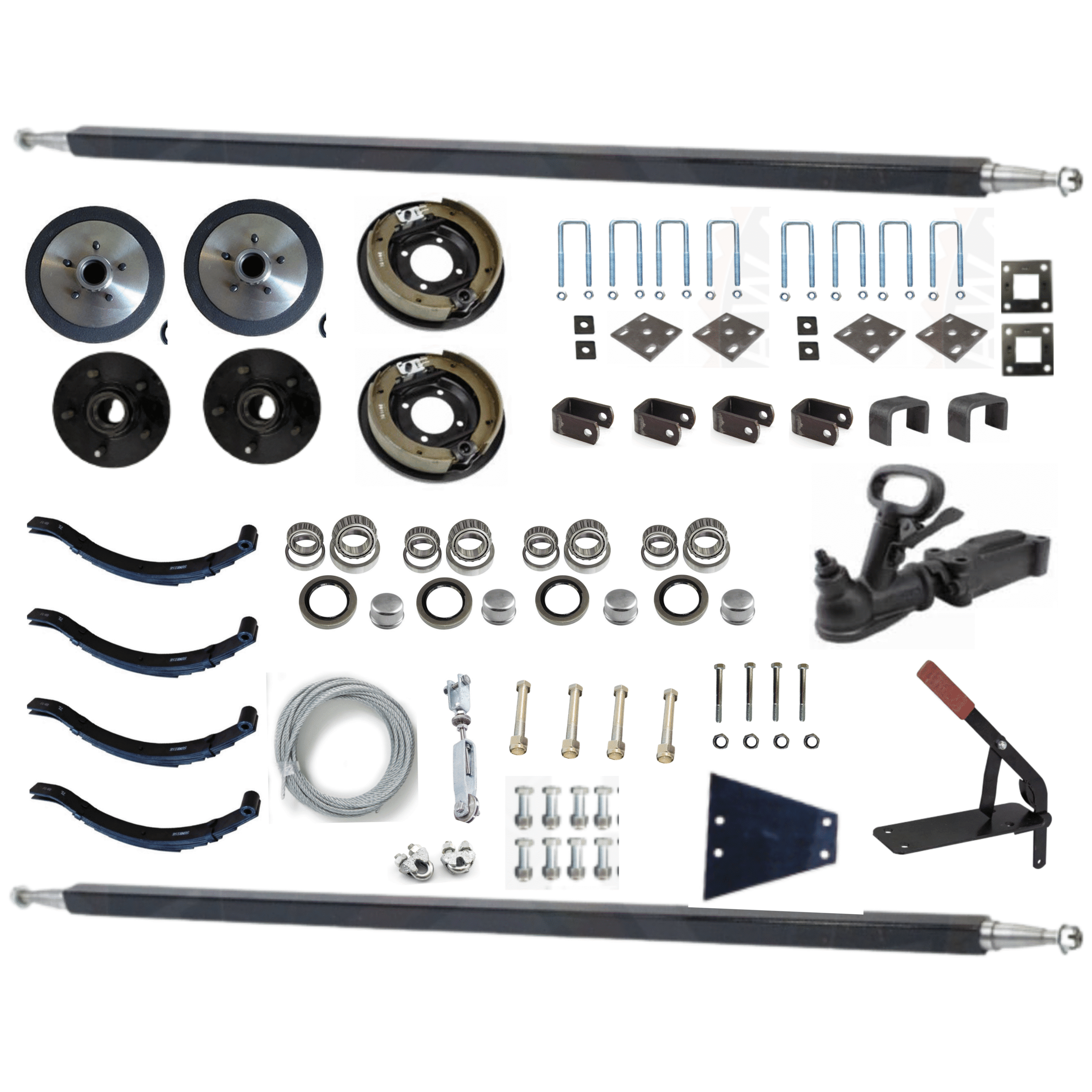

ORDER CONTAINS

– 2 x 40mm Square Axles (1T Rated)  (Customer To Specify Length)

Axle Lengths Available: (From Tip to Tip)

(60”, 63”, 64”, 65”, 66”, 67”, 71’’, 72”, 73”, 75’’, 76”, 77’’, 78’’, 79”, 81’’, 83’’’, 85’’, 87’’, 89’’, 93’’, 94’’, 95’’, 96’’, 97’’)

– ADDITIONAL $70 PER AXLE FOR CUSTOM LENGTHS

4 x 7 Leaf 45mm wide Eye / Slipper Springs;

1x Tandem Spring Fitting Kit to suit 40mm Square Axles  (includes 4 x fish plates, 8 x U-Bolts, 4 x Axle Pads, 4 x spring bolts, 4x deep front hangers and 2x rear hangers);

2 x Hubs complete with bearing kits (Available in 5 Stud pattern: Ford, Commodore, HQ or HT );

2 x 9” Brake Drums Complete (please specify pattern)

1 pair of Mechanical brake assemblies (1LH/1RH)

2 x Mechanical Drum Brake Flanges – suit 40mm Sq Axle (c/w/ Bolt /Nut/washer)

1 x 2.0T Mechanical Override Coupling with actuator

1 x Cable Adjuster

1 x 8Mtr Roll 4mm Winching Cable

4 x Cable Clips

Note: $100 Extra for assembled axles

(Axle assembly requires deposit or full payment before we can begin on your order.)

If you are unsure of your axle length, please provide your trailer Chassis measurement and backspace of wheels and our team will do our best to assist you!

EXTRAS TO REPLACE THE ABOVE STANDARD KIT PART

• Kit to suit 6 stud Landcruiser  wheels                                            Add $130.00
• Tandem R/Roller Springs in Lieu of Slipper                                   Add $250.00
• Overlay Axles                                                                                      Add $ 320.00
• Drop Axles 2″ or 4″                                                                            Add $ 320.00
• 45mm square axles with 1.4T maximum operating capacity     Add $ 100.00
