DIY 1600kg Single Axle Electric Kit with Eye to Eye Springs

Price range: $875.00 through $965.00

SKU: DIY1600SAEK

1 x DIY 1.6T Single Axle Electric Drum Brake Kit

Axle Length

Stud Pattern

Axle Asembled

Clear

Delivery and Click & Collect

Free Click & Collect

5 Iris Place, Acacia Ridge QLD 4110

Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.

Delivery

Product Specifications

Item Description:

Build or upgrade your trailer with confidence using this complete 1600kg Single Axle Electric Brake Kit. Designed for easy DIY installation, this kit includes everything you need to fit reliable electric drum brakes and heavy-duty suspension — giving you smooth performance, superior stopping power, and lasting durability on or off the road.

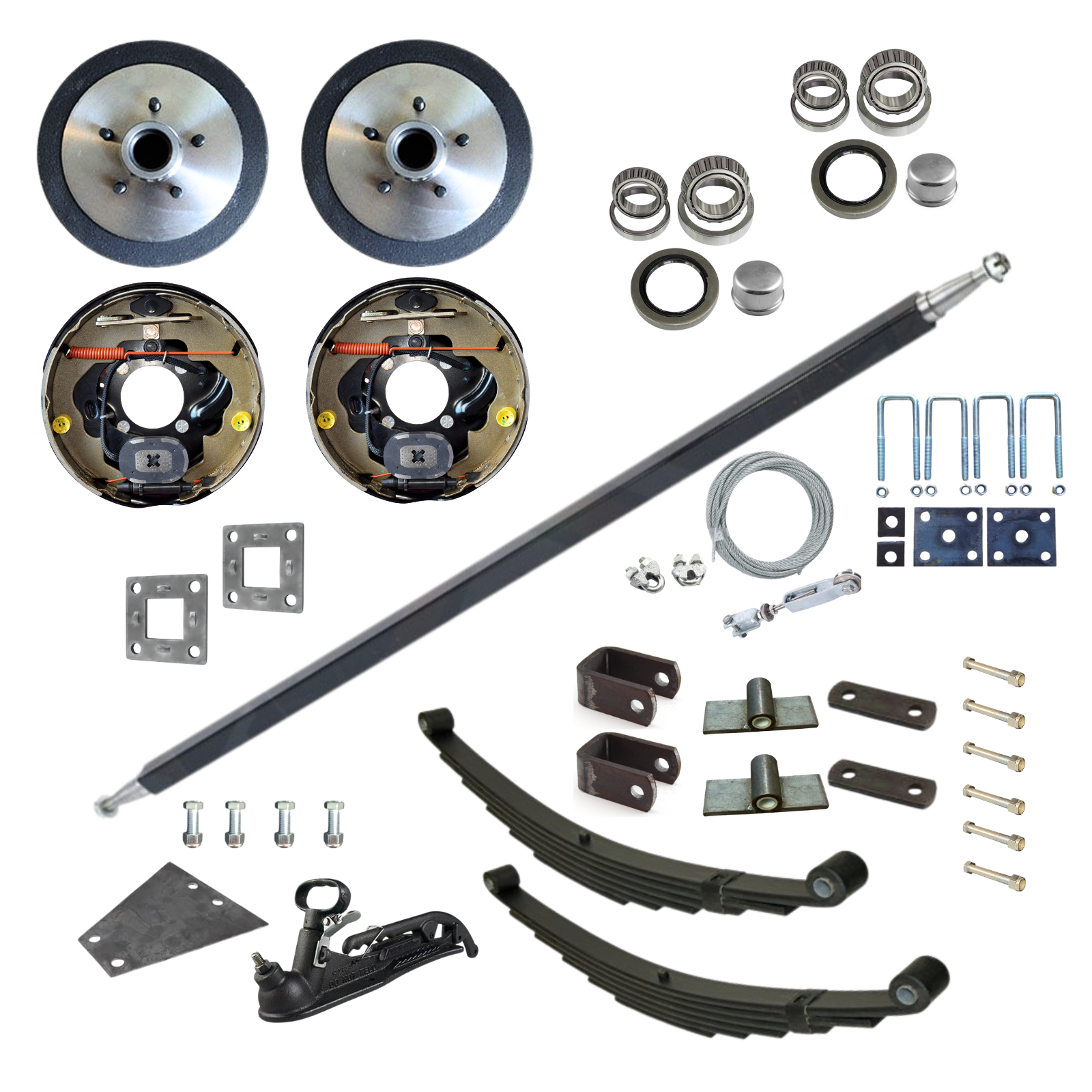

Orders Includes:

1 x DIY 1.6T Single Axle Electric Drum Brake Kit
- 1 x 50mm Square Parallel Axle (length of your choice)
- 2 x 10″ Electric Parallel Drums (stud pattern of your choice)
- 2 x Ford Parallel Bearing Sets
  - 4 x Bearings 68149
  - 2 x Oil Seal SL
  - 2 x Dust Caps
  - Wheel Nuts to suit
- 1 x Electric Backing Plate Left Hand Side
- 1 x Electric Backing Plate Right Hand Side
- 2 x Electric Mounting Flange
- 8 x Nuts and washer for backing plate
- 2 x Eye to Eye springs 7 leaf 45x8mm wide
- Eye to Eye Spring Fitting Kit
  - 2 x Dumb Jacks 45mm
  - 2 x Front Hanger 45mm
  - 2 x Shackle Plate 45mm
  - 6 x High Tensile Bolts 3 1/2″

- Brake Cable Kit
  - 1 x 8mt of Brake Cable
  - 2 x Cable Clips
  - 1 x Cable Adjuster
- 1 x 3.5T Electric Coupling Black
- 1 x 4-Hole Coupling Plate
- 4 x High Tensile Bolts 1/2″
- 1 x U Bolt Kit
  - 4 x 50Sq U-Bolts Zinc
  - 2 x Fish Plates 45mm
  - 2 x Axle Pad
