Item specifics
Brand New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller’s listing for full details.

Product Type: DIY 1400 Single Axle Trailer Kit

Manufacturer Part Number: DIY1400SAHDRUMBK

Brand: Bawa

PERFECT FOR BUILDING YOUR OWN TRAILER!
D.I.Y 1.4Tonne Hydraulic Brake Single Axle Kit with Eye to Eye Springs

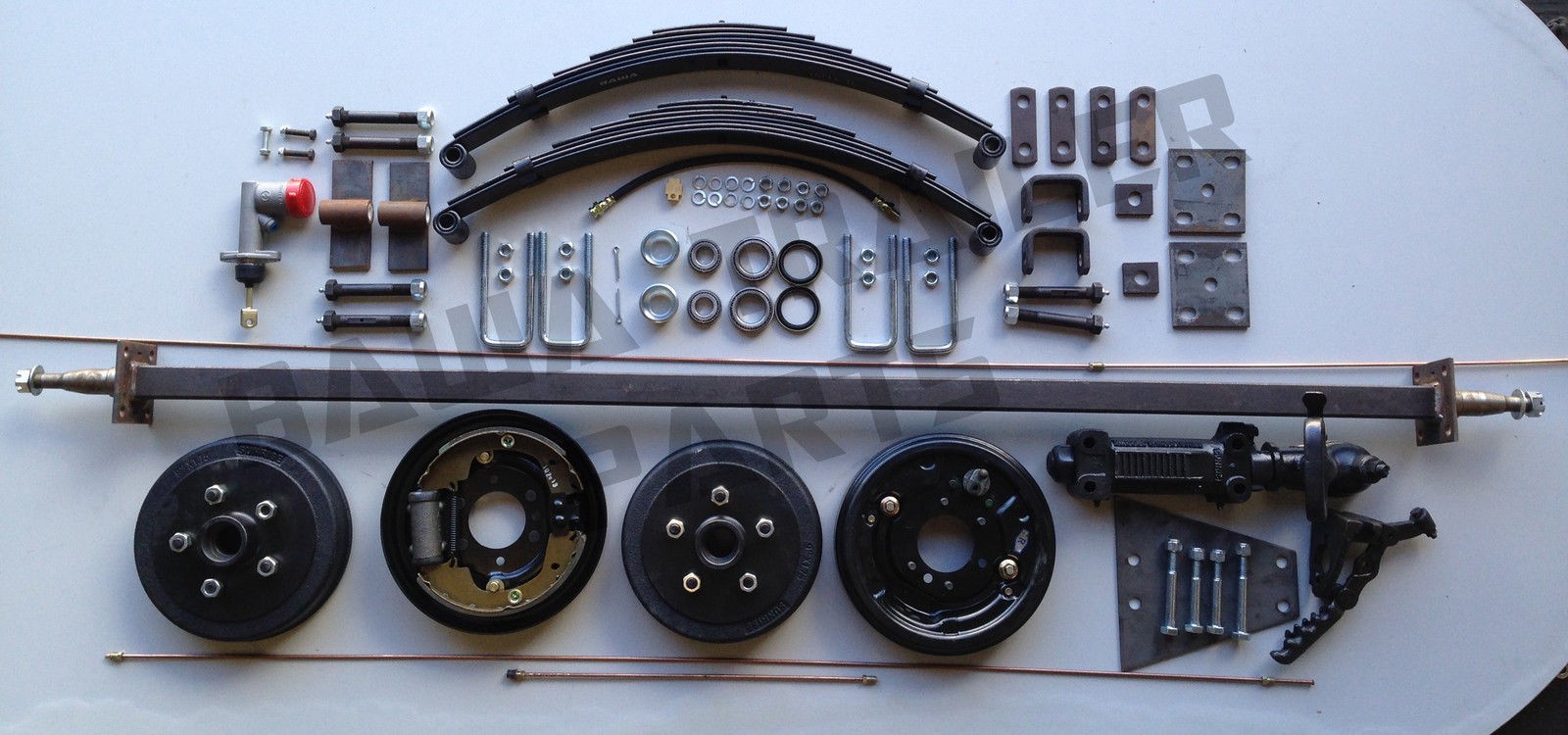

Kit Contains
1 x 45mm Square Axle Rated 1.4 Tonne with welded flanges to suit hydraulic drum brakes (customer to specify length)

2 x 7 Leaf 60mm wide Eye to Eye Springs
1 x Single Axle Spring Fitting Kit – suit 45mm Square Axle
2 x 9″ Hubdrums Complete (Choose from HQ, Ford and Land cruiser)
Cups will already be inserted for you. So you don’t have to worry about the hassle!
2 x Slim Line (Ford) Bearing Kits
(2 x Large Bearings, 2 x Small Bearings, 2 x Bearing seals, 2 x Dust caps & Wheel Nuts)
2 x Hydraulic Brake Assemblies (1 LH / 1 RH)
1 x Hydraulic Brake Flange Kit suit 45mm Sq Axle (c/w Bolt, Nut/Washer)
1 x 2.0T Hydraulic Override Coupling (c/w 3/4″ Master Cylinder)
1 x Hydraulic Brake Fitting Kit
1 x Bundy Tube Kit
Bundy Tubes Will Already Be Flared For You!

Extras
Overlay Axle
Add $100.00!
Drop Axle 2″ or 4″ Drop
Add $200.00!
Eye & Eye 7 Leaf Offroad Spring Kit – Rebound Springs 5/8″  U-Bolts (in lieu of E&S Springs)
Add $190.00!
2.0T Polyblock Hydraulic Override Coupling (in lieu of above Override Coupling)
Add $200.00!
Axle Assembly (If required)
Add $50.00!

(Axle assembly requires deposit or full payment before we can begin on your order.)

If you want assembled axle, please select option YES, otherwise proceed with NO

Orders can be picked-up from our warehouse in Acacia Ridge

Thanks !!
