10″ GALVANISED Mechanical Disc Brake Kit Trailer Caravan Hub Discs Override Brakes

Price range: $297.00 through $355.00

SKU: HDG10,MBCG
SKU: HDG10,MBCG

1 x Galvanised Mechanical Disc Brake Kit

Delivery and Click & Collect

Free Click & Collect

5 Iris Place, Acacia Ridge QLD 4110

Monday to Friday: 8:30 AM – 4:30 PM. You will be notified when your order is ready for collection.

Select delivery location

Delivery

Item Description:
  • Toolbox can be connected to camper trailer or caravan
  • Sturdy Aluminium plate construction
  • Fully welded seams to add strength for toughest jobs
  • Weather resistant to suit climate
  • Perfect for Utes
  • Huge Storage
  • Secure and Safe
  • Easy to handle as it comes with chains fitted

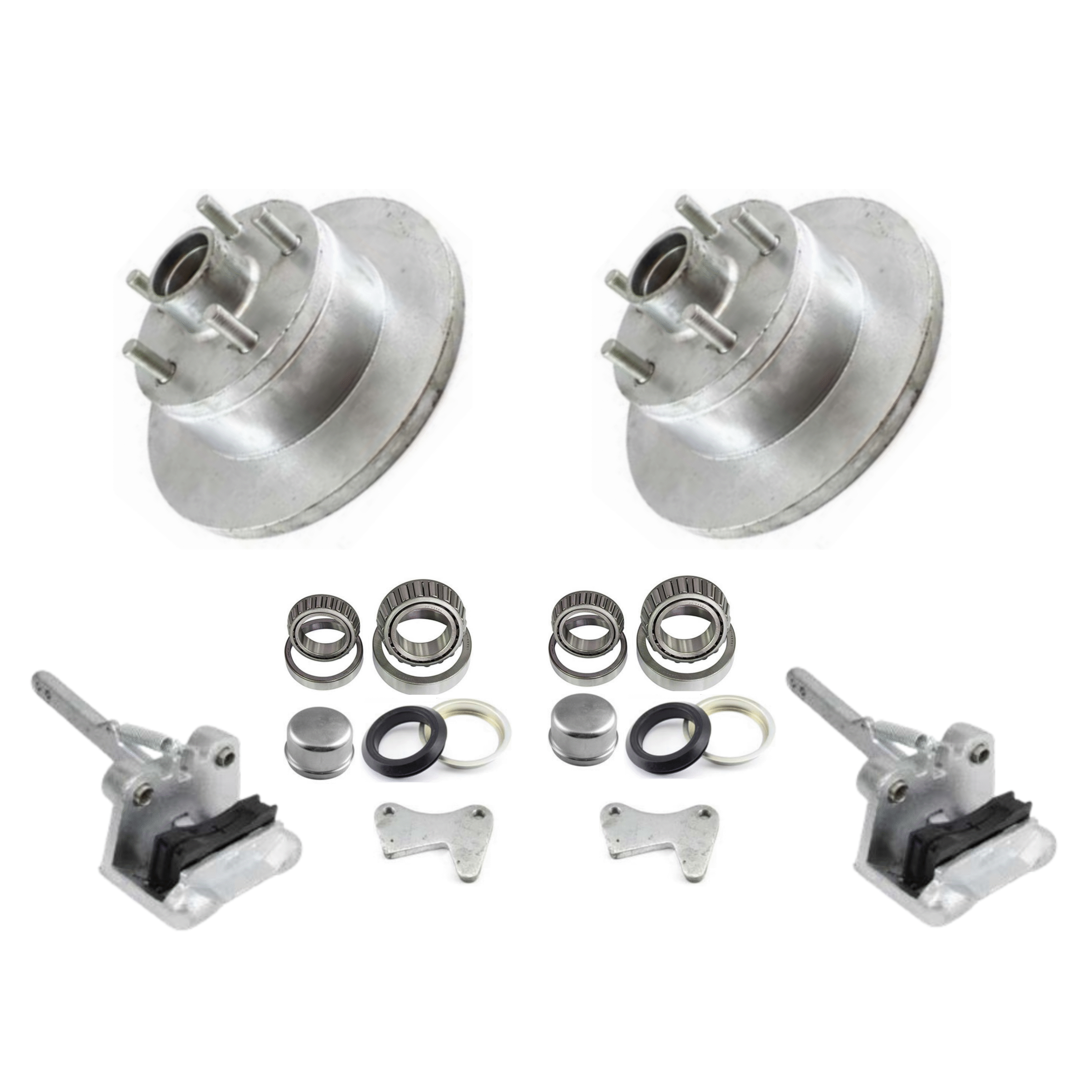

Orders Includes:

2 x Galvanised Mechanical Discs (Available in – Ford, HT, or HQ)
(Cups will already be inserted for you. So you don’t have to worry about the hassle!)

2 x Ford SL or Holden LM Bearing Kits (2 x Large Bearings, 2 x Small Bearings, 2 x Marine Bearing seals, 2 x Dust caps)

2 x Galvanised Mechanical Brake Calipers

2 x Galvanised Mounting Plates with bolts



Item Specifications:
  • Material: Galvanised
  • Brake Type: Mechanical Trailer Disc Brakes
  • Disc Thickness: 16mm
  • Fittings: Complete with Bearings, Seals, Duct caps and Nuts



Stud Pattern                                             PCD                               Stud Distance                 Stud Size

FORD                                   5 x 114.3mm             67.18mm              1/2″
HQ HOLDEN                       5 x 120.65mm           70.91mm             7/16”
HT HOLDEN                        5 x 108mm                 63.95mm             7/16″

Ford (SL) Bearings –  Designed to suit 45mm Square axles 1400Kg

  • Bearing Numbers : L68149/LM12749

Holden (LM) Bearings – Designed to suit 39mm Round Axle and 40mm Square Axle

  • Bearing Numbers: LM67048/LM11949
